PU(Polyurethane) Duct Hose
HIGH
PRESSURE WIRE BRAIDED HOSE
 |
Product Specification |
PU(Polyurethane) Duct Hose
PU DUCT HOSE is made of abrasion resistant Polyurethane with copper plated spring steel spiral embedded into wall. Very light and extremely flexible hose with good tensile and abrasion strengths and ultimate elongation. Free of softeners, halogen free, physiological safe, cadmium free and excellent elasticity. Hose will also remain flexible below 0°C.
Applications
Aspiration of dust, wood flour, shavings, granulate, powder, gases and fumes, Textiles, Plastic, Printing, Ceramic, Furniture and wood industry, shavings exhaust, chemical industry, paint industry, oil fog exhaust, machine manufacturing. Universal hose for transportation of light solids and for air and gas transportation. Being Food Grade material Can use in food & Pharmaceuticals industries.
Available Sizes
25mm to 350mm
Temperature range
-40° C to + 90° C (+ 125° C short term).
|
|
|
PU Hose Heavy Duty
HIGH
PRESSURE WIRE BRAIDED HOSE
 |
Product Specification
We have PU Hose also in wall thickness of 1.2mm & 2.5mm. This Heavy Duty PU Hose mainly use to convey some material like powder, granules some chemicals etc. Inner surface for these PU Hoses is smooth so better conveying of materials. This product is also Made in Germany.
Temperature
-40° C to + 90° C ( Short term + 125° C )
Available Sizes
38mm to 200mm
|
|

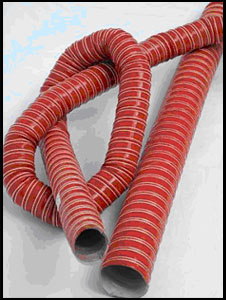

Silicon Double Layer Hose
MEDIUM
PRESSURE TEXTILE BRAIDED HOSE
 |
Product Specification
Silicon Hoses is made of Silicone coated Double Layer glass-fiber fabric with inner hidden steel spring spiral and outer glass fiber cord. They are universally used for high-temperature but low-pressure applications. Good flow characteristics due to additional interior lining. They can be laid in closest areas (small bending radius), are kink-proof, very flexible and light weight. We provide Double Layer Silicon Hose.
Applications
Ceramic Industries, Printing and Plastic Industries specially in high Temperature Blower Application for the exhaust of cold/hot air, gas, smoke and chemical fumes. Lightweight, smooth interior. Hot-air hose for granulate dryers, aircraft construction and astronautics, vehicle construction, mechanical engineering, armored (military) cars, bus construction, hot air and cry engineering, chemical industry, drying technology, truck and car auxiliary heating & motor construction.
Temperature Range
-55° C to + 300° C.
Length
Standard length: 4 meter.
Available Sizes
25mm to 300mm
|
|
TPR Hose (PP Coated Steel Wire Reinforced)
Delivery
/Suction Hose
 |
Product Specification
TPR Hose made from EPDM/PP with PP Coated Steel Spring Wire reinforced which is the substitute of Neoprene Hose. It is quiet competitive without compromising your requirement. It is light & highly Flexible Hose, Temperature stable with good resistance against ozone. It has also more strength and also capable of eletro-static discharge. Hose is made in Germany.
Applications
- Air intake for Air compressor and engine.
- For gaseous media such as vapors & smoke
- For steam extraction and also for hot & cold Air
- Also can use as dust collector & conveying of powder etc.
Temperature
-40° C to + 135° C
Color
Black
Sizes Available
From 16mm to 200mm.
|
|
PU Hose With Rigid Helix
 |
Product Specification
* Outer bore of TPU ( Polyurethane based on Ether ); Spiral made of HPVC welded to outer bore
* Light & highly flexible hose, excellent abrasive and mechanical properties, good chemical resistance, free of halogens, food-grade.
* Application : Suction of abrasive wooden chips, granulates, dust, fume, air ducting for warm air supply and many more.
* Material handling in Plastic Industry and textile Industrial
* Transparent with Grey Rigid Helix.
* Also available in food grade
Temperature Range
-20° C to + 80° C.
Available Sizes
19mm to 90mm
|
|

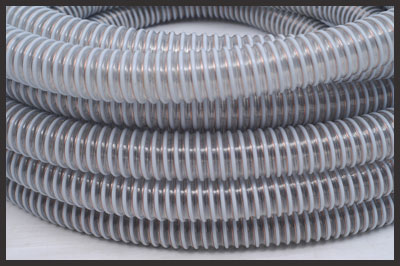

PVC Steel Wire Reinforced Hose
Application
PVC Hose with steel wire reinforced is very flexible and transparent having temperature resistance to 5” to + 65”. Being the food grade quality can be used in pharmaceuticals industries & Food Industries. It can be Widely used for drawing & conveying water, oil, milk, powder, alcoholic chemicals etc . It has high axial strength, good resistance to alkalis & acids.
| Inside Diameter |
Outside Diameter |
Length |
Working pressure |
Bursting Pressture |
| MM |
MM |
m |
BAR |
BAR |
| 12.7 |
18.1 |
100 |
10 |
30 |
| 16 |
22 |
100 |
10 |
30 |
| 19 |
25 |
50 |
9 |
27 |
| 25.4 |
32 |
50 |
7 |
21 |
| 30.5 |
38.5 |
50 |
6 |
18 |
| 32 |
40 |
50 |
6 |
18 |
| 38 |
47 |
50 |
6 |
18 |
| 40 |
49 |
50 |
6 |
18 |
| 45 |
54 |
30 |
4 |
12 |
| 51 |
60 |
30 |
4 |
12 |
| 60 |
72 |
30 |
3 |
9 |
| 64 |
78 |
30 |
3 |
9 |
| 75 |
90 |
20 |
3 |
9 |
| 102 |
117 |
20 |
3 |
9 |
| 127 |
143 |
15 |
3 |
9 |
| 152 |
168 |
15 |
3 |
9 |
|
Vacuum Hose
 |
Product Specification
*Outer Bore of Soft PVC ( -0.5mm in Premium quality, according to ROHS ) with ribbed outside structure.
*Light, highly flexible PVC hose, outside rib structure, reinforced with PVC coated steel wire.
*Robust because of New Ribbed outside structure.
For Better mechanical strength ( Against pulling & bending stress )
For Better outside abrasive protection and
For Better gliding effect over smooth surface.
Excellent mechanical properties because of special production process ( Which allows long molecule chains along the axis of the hose = direction of extrusion; much better than aclassical wrapped spiral hose )
Very Small Bending Radius ( r<D)
Good chemical resistance
* Temperature Range : -10oC to + 70oC
* Available Size : 32mm,38mm and 51 mm
* Available Colour : Black
* Standard Length : 20 Meter
|
|
High Pressure Power Spray Hose
Canvas Flathose with Rubber Lining for Water Delivery
Product Specification
The hose has a polyester jacket and rubber lining. Polyester jacket is constructed of warp in polyester staple and weft in polyester filament. Lining is made of natural rubber. The hose is very flexible and resists high pressure. It has good resistance in rolling and age. Special adhesive is applied between jacket and rubber. Therefore, the adhesive strength is greatly improved. After long time use, the rubber lining is not separated. It is light and flexible. It has good adhesive strength and long service life.
| Specification |
1. Colour : white
2. Materials :
a) Outside jacket: High strength synthetic yarns
b) Inner lining: white rubber
c) Outside jacket colors: white
|
3 Length : 30 meters
Size |
Size |
Working
Pressure |
Burst
Pressure |
Standard
Length |
Weight/Metre |
Inch |
MM |
bar |
Kg/Sq. meter |
Metres |
KGS |
1 1/2" |
40 |
8 |
24 |
30 |
0.26 |
2" |
50 |
8 |
24 |
30 |
0.33 |
2 1/2" |
65 |
8 |
24 |
30 |
0.46 |
3" |
80 |
8 |
24 |
30 |
0.55 |
4" |
100 |
8 |
24 |
30 |
0.70 |
| 6" |
150 |
8 |
24 |
30 |
0.90 |
|
Aluminum Chimney Hose
 |
Properties
- Aluminum Air Duct is made of aluminum. High flexibility and axial compressibility , extension rate is 1: 3.7
- Temperature range : -30° C + 140° C
- Maxim Air Flow: 30m/s
- Maxim working pressure: 10000 pa
Application
The aluminum Chimney air duct hose is especially ideal for high pressure and low pressure ventilation system, like range hood.
It can be fixed directly on the fitting. In case of fire or high temperature, there is no toxic gas.
ALUMINUM HOSE ( KITCHEN CHIMNEY HOSE )
| SIZE IN INCH |
LENGTH IN MTR |
| 3" |
3 |
| 4" |
3 |
| 6" |
3 |
| 8" |
3 |
|
