CONCEPT

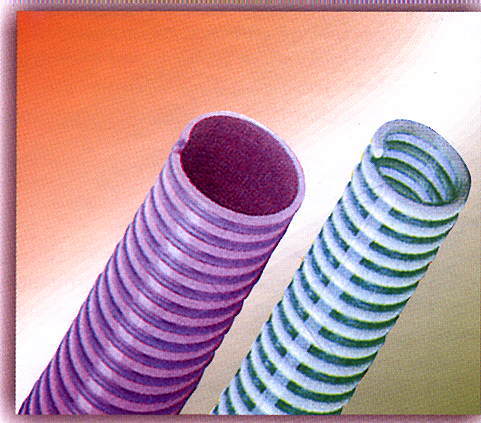

PVC Suction hose as it is commonly called is essentially a flexible conduit for suction and discharge of water ,oils and chemicals from place of source to the place of actual use.

STRUCTURE

All purpose suction and discharge hoses are made out of flexible PVC with the reinforcement of specially compounded Rigid PVC Spirals. Low pressure and high pressure flexible hoses using the PVC characteristics are weather resistance, abrasion resistance and have excellent resistance to inside and outside pressure. Due to reinforcement of rigid PVC Spirals and its Structural composition of wall flat inside and screw outside it is ideal for withstanding Multiaxial stress.



APPLICATION

PVC Suction hose is extensively used for duction and discharge of water in irrigation, for transporting chemicals and oils in industries and for suction operations in construction sites and minings.


TECHNICAL SPECIFICATIONS

Internal Diameter Nominal Bore Inch I.D. mm O.D. mm Testing Pressure kgf/cm2 Length mtr
3/4 19 24 10.0 30
1 25 30 10.0 30
1-1/4 32 37 10.0 30
1-1/2 38 44 10.0 30
2 50 58 7.5 30
1-1/2 63 72 7.5 30
3 75 84 7.5 30
4 100 112 5.5 30
5 125 143 5.0 15
6 152 170 4.0 15
8 203 225 3.0 06
